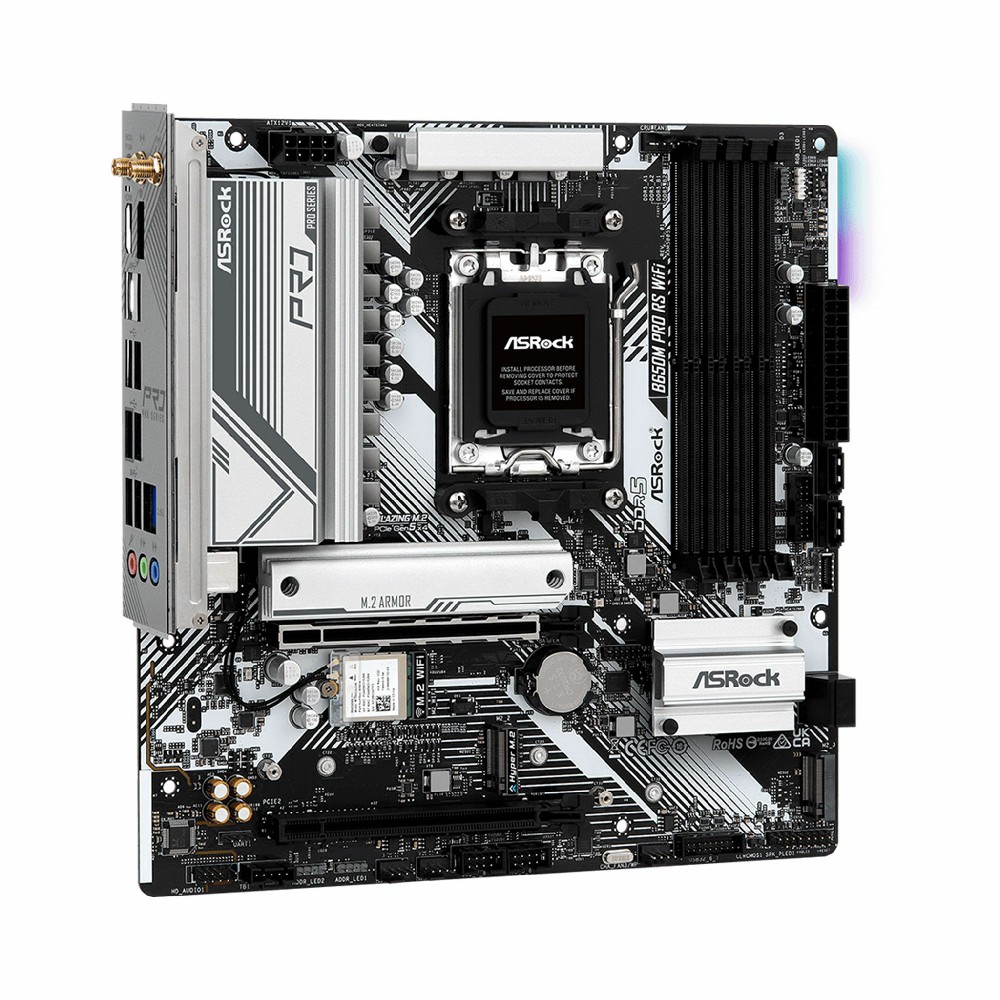

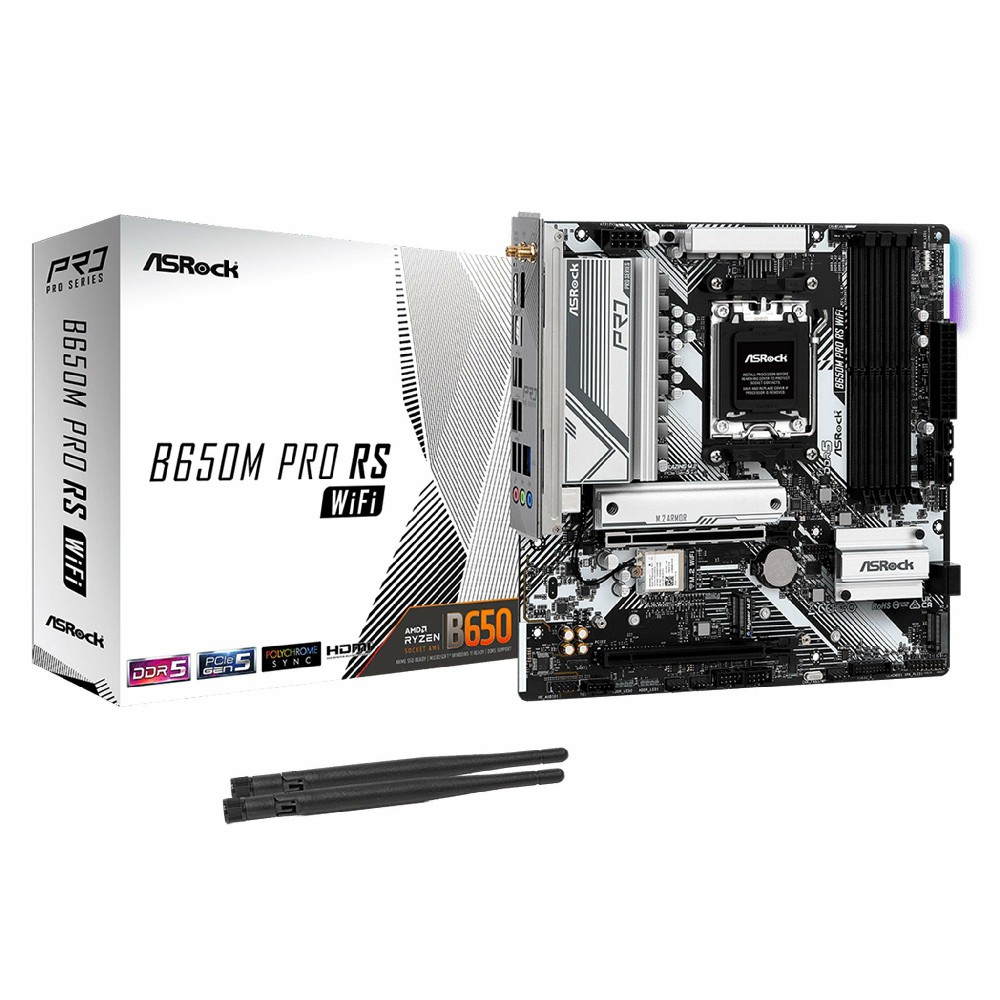

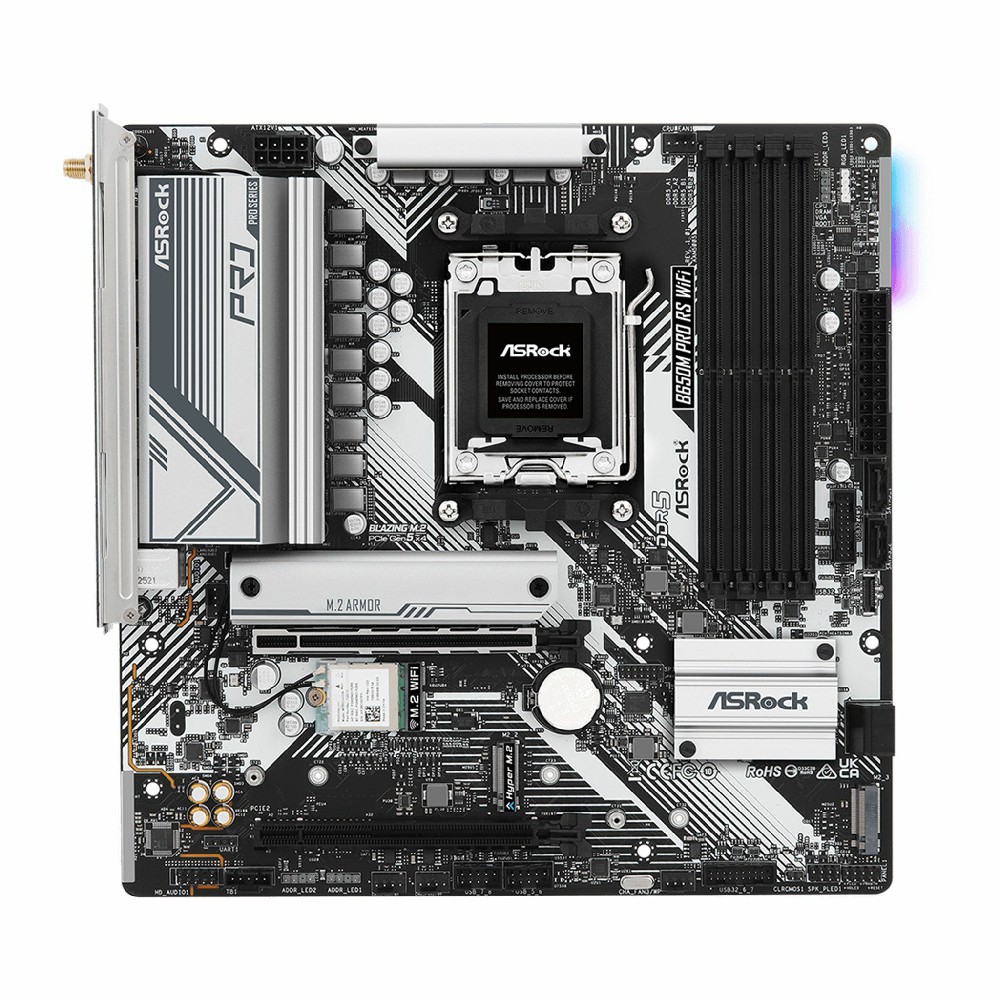

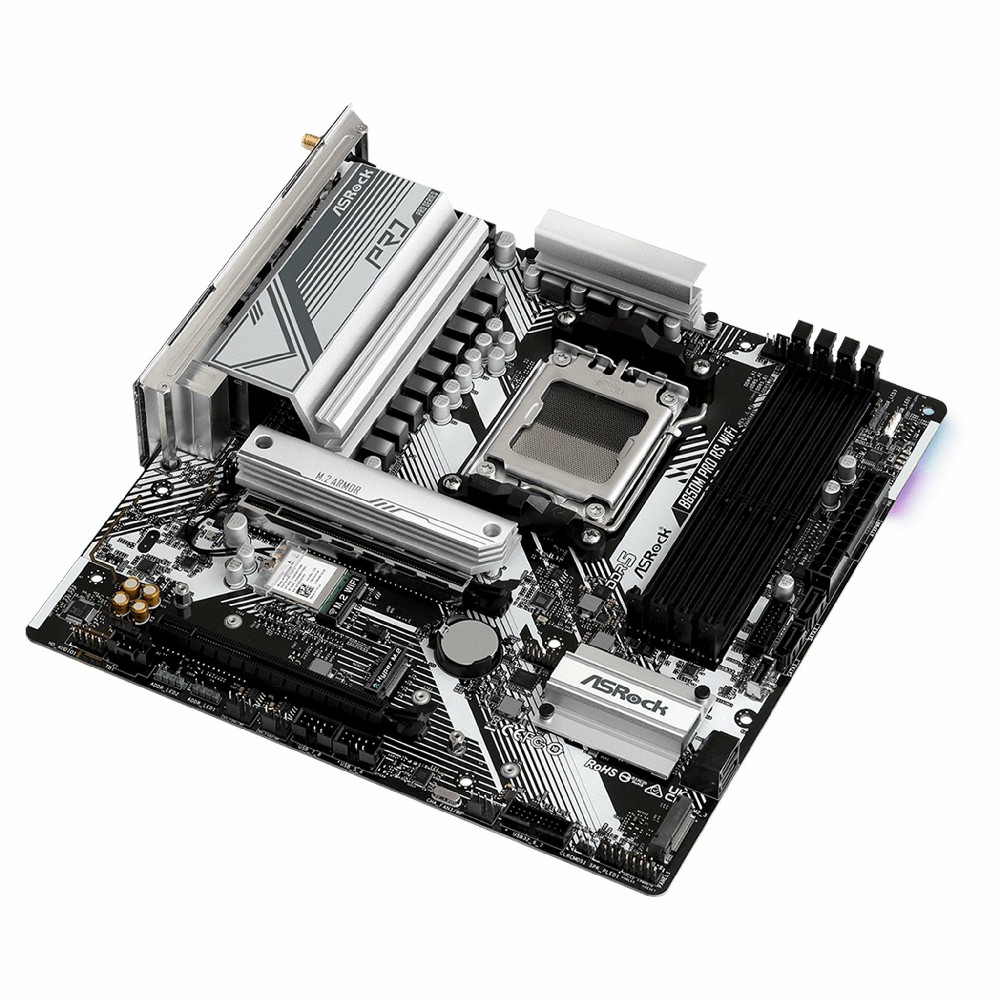

Mainboard ASRock B650M Pro RS Wifi
3.540.000 ₫ 3.690.000 ₫
Khuyến mại đặc biệt (SL có hạn)
* Hỗ trợ trả góp 0%.
* Lưu ý: Khuyến mãi không áp dụng khi mua trả góp.
Gọi 0962947282 để được tư vấn mua hàng
Sản phẩm chính hãng 100%
Bảo hành chính hãng 1 năm
Mua hàng Online toàn quốc: Hotline 0962.94.7282
- Mua online - Giao hàng nhanh chóng.
CHÍNH SÁCH GIAO HÀNG:
- GIAO HÀNG MIỄN PHÍ Trong Bán Kính 50Km ( Áp Dụng Với PC - Laptop )
- GIAO HÀNG MIỄN PHÍ ( 24-48H ) Đối Với linh kiện - Phụ Kiện Trị Giá hơn 1.500.000 VNĐ
- SHIP COD TOÀN QUỐC - Kiểm Hàng Thanh Toán - ( Cọc 10% Giá Trị Sản Phẩm)
- GIAO HÀNG MIỄN PHÍ Gửi Xe Toàn Quốc Đối Với các đơn Hàng Thanh Toán Trước.
Superb Productivity - PCIe Gen5 (M.2)
- Dual Channel DDR5
Rock-Solid Durability - 8+2+1 Power Phase, 50A Dr.MOS
- Pre-Installed I/O Shield
Ultrafast Connectivity - 2.5G LAN, 802.11ax Wi-Fi 6E Module
EZ Update - BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter - ASRock Post Status Checker
CPU Support - Supports AMD Socket AM5 Ryzen™ 7000 Series
Processors
Chipset - AMD B650
Memory - Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory
up to 7200+(OC)*
- Max. capacity of system memory: 192GB
- Supports XMP and EXPO memory modules
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
Graphics - Integrated AMD RDNA™ 2 graphics
- HDMI 2.1 and DisplayPort 1.4 support
Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User-Friendly UI
- Optimized Default Setting for Game, Browser,
and Streaming Modes
- User Customized Priority Control
Wireless LAN - 802.11ax Wi-Fi 6E Module
- Supports Dual-Band 2x2 with extended 6GHz band
support
- Bluetooth 5.2 + High-speed class II support
- Supports MU-MIMO
Expansion Slots - 1 x PCIe 4.0 x16 Slot (PCIE1) supports x16 mode
- 1 x PCIe 3.0 x16 Slot (PCIE2) supports x4 mode
- 1 x M.2 Socket (Key E) for WiFi/BT PCIe module
- Supports AMD CrossFire™
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage - Blazing M.2 Socket (M2_1) supports PCIe Gen5x4
(128 Gb/s) mode*
- Hyper M.2 Socket (M2_2) supports PCIe Gen4x4
(64 Gb/s) mode*
- M.2 Socket (M2_3) supports PCIe Gen4x2 (32 Gb/s)
- 4 x SATA3 6.0 Gb/s Connectors
- Supports RAID 0, RAID 1, RAID 10 for SATA and
M.2 NVMe storage devices*
USB Ports - 1 x USB 3.2 Gen2 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear)
- 1 x USB 3.2 Gen1 Type-C (Front)
- 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
Connectors - SPI TPM Header
- Power LED and Speaker Header
- RGB LED Header*
- Addressable LED Headers**
- Various fan connectors with Smart Fan Speed
Control***
- ATX Power and 12V Power Connectors
- Thunderbolt™ AIC Connector (5-pin)
- USB Headers for 2.0 and 3.2 Gen1
- Front Panel Type C USB 3.2 Gen1 Header

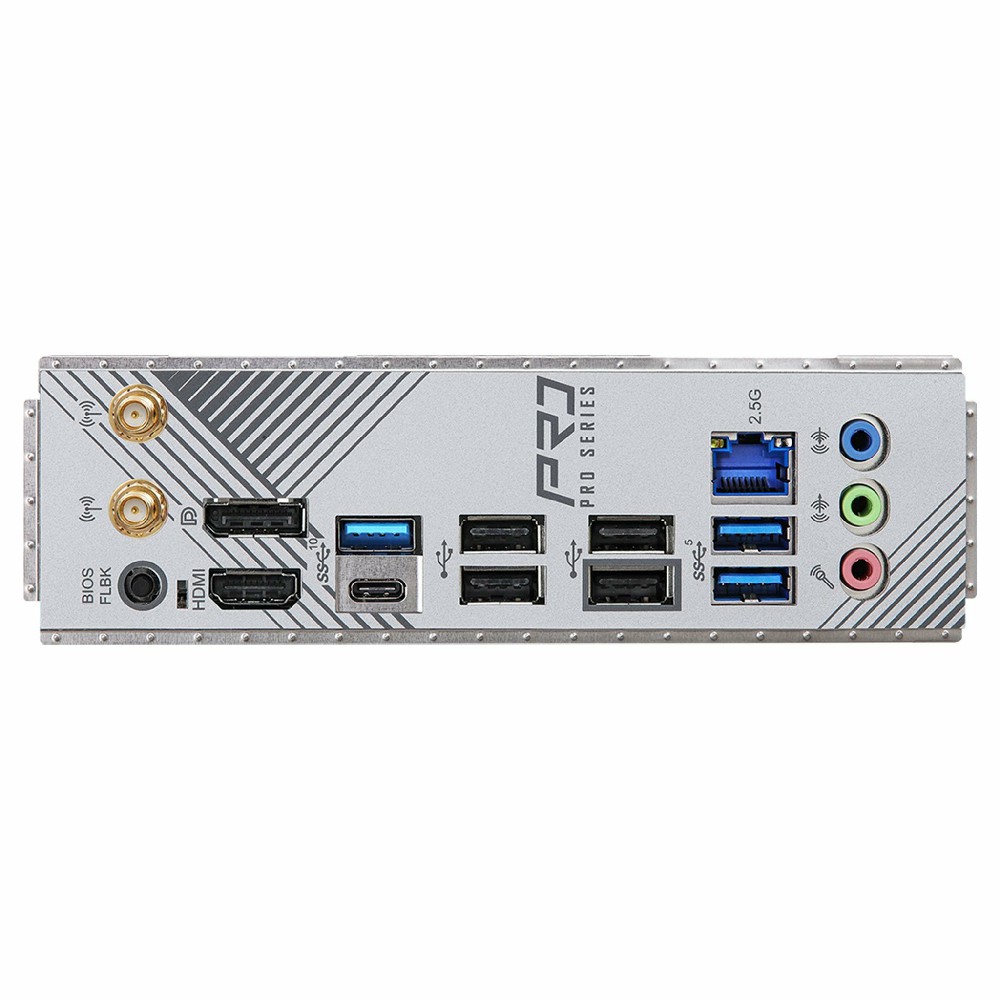

Rear I/O Ports - Antenna Ports (2x)
- HDMI Port
- DisplayPort 1.4
- USB 3.2 Gen2 Type-A Port (10 Gb/s)
- USB 3.2 Gen2 Type-C Port (10 Gb/s)
- USB 3.2 Gen1 Ports (2x)
- USB 2.0 Ports (4x)
- RJ-45 LAN Port
- BIOS Flashback Button
- HD Audio Jacks: Line in/Front Speaker/Microphone
Software and UEFI - ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Accessories - User Manual
- SATA Data Cables (2x)
- ASRock WiFi Antennas (2.4/5/6 GHz) (2x)
- Screws for M.2 Sockets (3x)
- Standoff for M.2 Socket
Form Factor - Micro ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm)
Operating System - Microsoft® Windows®
Đọc thêm
Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
8+2+1 Power Phase, Dr.MOS
Supports DDR5 7200+ MHz (OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4)
1 Hyper M.2 (PCIe Gen4 x4)
1 M.2 (PCIe Gen4 x2)
1 USB 3.2 Gen2 Type A+C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
Dragon 2.5G LAN
802.11ax Wi-Fi 6E + Bluetooth
