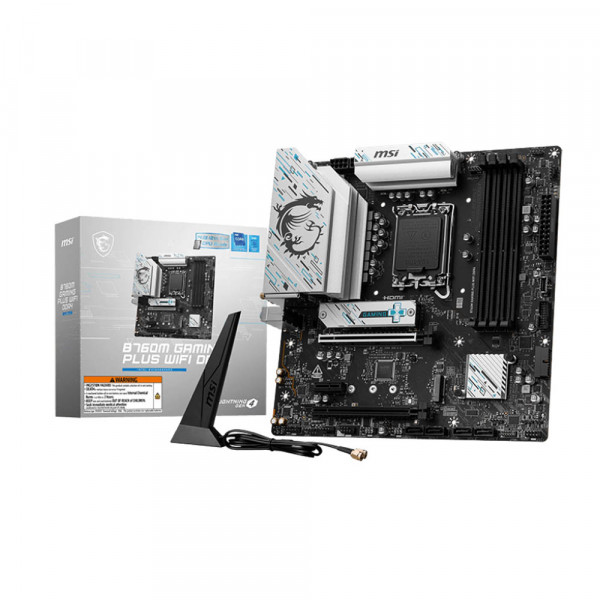

Mainboard MSI B760M GAMING PLUS WIFI DDR4
3.390.000 ₫ 4.500.000 ₫
Khuyến mại đặc biệt (SL có hạn)
* Hỗ trợ trả góp 0%.
* Lưu ý: Khuyến mãi không áp dụng khi mua trả góp.
Gọi 0962947282 để được tư vấn mua hàng
Sản phẩm chính hãng 100%
Bảo hành chính hãng 1 năm
Mua hàng Online toàn quốc: Hotline 0962.94.7282
- Mua online - Giao hàng nhanh chóng.
CHÍNH SÁCH GIAO HÀNG:
- GIAO HÀNG MIỄN PHÍ Trong Bán Kính 50Km ( Áp Dụng Với PC - Laptop )
- GIAO HÀNG MIỄN PHÍ ( 24-48H ) Đối Với linh kiện - Phụ Kiện Trị Giá hơn 1.500.000 VNĐ
- SHIP COD TOÀN QUỐC - Kiểm Hàng Thanh Toán - ( Cọc 10% Giá Trị Sản Phẩm)
- GIAO HÀNG MIỄN PHÍ Gửi Xe Toàn Quốc Đối Với các đơn Hàng Thanh Toán Trước.
Chipset
INTEL B760
CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Bộ nhớ
4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Cổng xuất hình
2x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
2x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Khe cắm PCI-E
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Khe cắm ổ cứng
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
2x USB 10Gbps Type A (Rear)
LAN
Realtek® RTL8125BG 2.5G LAN
WiFi và Bluetooth
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Internal IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
LED FEATURE
4x EZ Debug LED

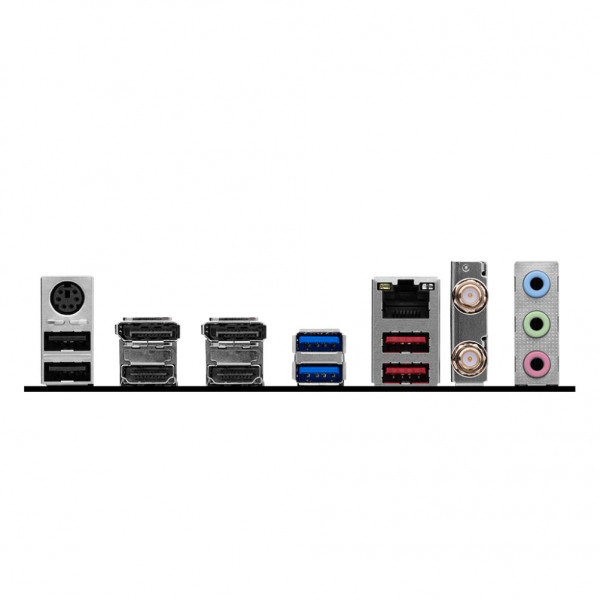

Cổng kết nối phía sau
Keyboard / Mouse
DisplayPort
USB 5Gbps Type A ports
2.5G LAN
Wi-Fi / Bluetooth
USB 2.0
HDMI™
USB 10 Gbps Type A ports
Audio Connectors
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
mATX
243.84mmx243.84mm
Socket: LGA1700 hỗ trợ CPU Intel thế hệ thứ 12, 13 và 14
Kích thước: Micro ATX
Khe cắm RAM: 4 khe DDR4 (Tối đa 128GB)
Khe cắm mở rộng: 2 x PCI Express x16 slot, 1 x PCI Express x1 slot
Khe cắm ổ cứng: 1 x M.2 connector, 4 x SATA 6Gb/s
